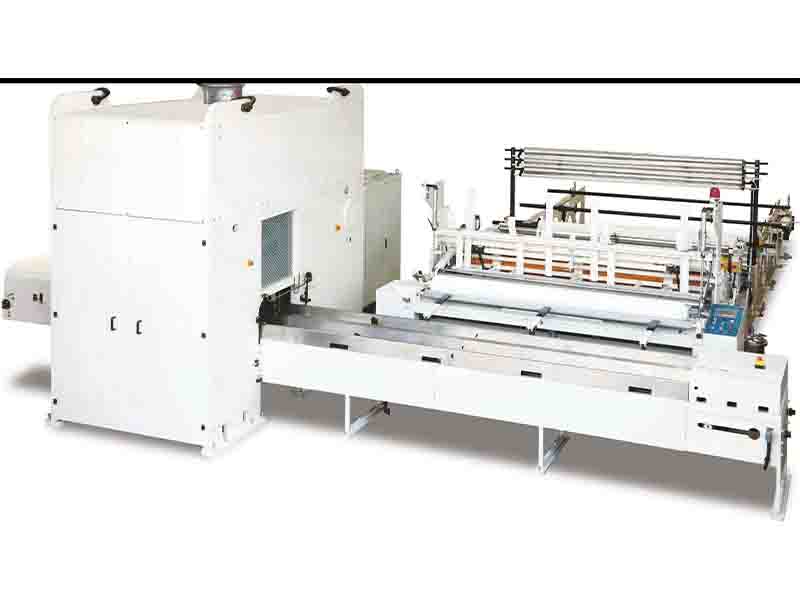

Enhance your converting capacity with our Automatic Toilet Roll Rewinding Machine, meticulously engineered to excel as a high-performance tissue rewinder, toilet roll rewinder, and toilet paper rewinding machine. Designed for seamless integration into modern tissue production lines, it delivers precision, speed, and reliability.
Core Functionality & Industry Relevance
As the first step of converting, the rewinder plays a critical role in preserving the original quality of tissue produced by the parent machine. It slits and combines jumbo rolls into finished tissue reels, meeting essential specifications such as ply count, roll diameter, and paper characteristics—thus enabling downstream efficiency and product quality.
High-Speed, Automated Rewinding
The Automatic Tissue Rewinder allows rapid conversion from jumbo to retail-sized rolls, achieving speeds ranging from mid- to high-speed —driving daily output and reducing bottlenecks .
Versatile Substrate Management
Tailored to accommodate single-ply and multi-ply formats, with flexible configurations for varying core diameters. Models include fully automatic feed, auto core-changing, edge trimming, glue spraying, and sealing functions.
Enhanced Process Reliability & Automation
Equipped with advanced PLC-based control systems, touch-screen interfaces, and servo-driven functions, the machine supports automatic tail-trimming, seamless core loading, and synchronized slitting—ensuring precision and minimal downtime .
Superior Roll Consistency
Integrated automatic tension control and stable rewinding maintain sheet integrity and destination accuracy, ensuring consistent paper quality and dimensional conformity for downstream packaging.
ZG-H600 Rewinder | |
---|---|
Max width of jumbo roll | 2850/3650mm |
Production speed | 0-500m/min with core |
Outer diameter of finished product | ø90-ø135mm |
Outer diameter of finished product core | ø35-ø50mm |
Perforating pitch | 6 blades; 80-140mm, 3 blades; 160-280mm |
Optional | |
---|---|
Unwinder | 1-5 Piles, with shaft or shaftless type |
Embossing | Steel to rubber/steel roller, high-definition glue-free composite |
Core gluing | Less than 2 wrinkle pitches per roll |
Glue/glue-free lamination | Point-to-point/Point-to-bottom/Decorative embossing |
Glue-free tail sealer | 25-40 Pieces/min |
Tip type tail sealer | 40 Logs/min |
Fast-change unwinder | With edge-embossing |
ZX-V High-speed automatic core making machine | |
---|---|
Paper tube forming speed | 90-100 m/min |
Number of paper core layers | 2-3 layers |
Paper core diameter | 40-50mm |
Max outer diameter of jumbo roll | φ1000mm |
Inner diameter of jumbo roll core | φ3mm |
Weight of bottom paper | 80g/m² |
Optional | |
---|---|
Printing | Single color concave plate, to be ordered |
Backstand | Automatic roll change, 3 sets, max. diameter φ1500mm |
Perforation function for paper core |
DH-VI Log saw cutter (4 Lanes) | |
---|---|
Paper roll length | 2850/3550mm, Others please specify |
Production speed | 160cut/min |
Specification of finished product | Outer diameter: 90-150mm; Cutting length: 50-300mm |
Dust collection system | Absorb dust on grinders, equipped with an exhaust fan to exhaust dust and hot air |
Both ends removal system |
ZQ-H850/450 Rewinder | |
---|---|
Max width of jumbo roll | 2000/3650mm |
Production speed | 0-400m/min with core |
Outer diameter of finished product | φ90–φ135mm |
Outer diameter of finished product core | φ35–φ50mm |
Perforation pitch | 80-140mm, 160-280mm |
With edge-embossing |
Optional | |
---|---|
Backstand | 1-4 Piles, with shaft or shaftless type |
Embossing | Steel to rubber/steel roller, high-definition glue-free composite |
Glue/glue-free lamination | Point-to-point/point-to-bottom/decorative embossing |
Glue-free tail sealer | 25-40 Pieces/min |
Tip type tail sealer | 40 Logs/min |
Fast-change unwinder |
