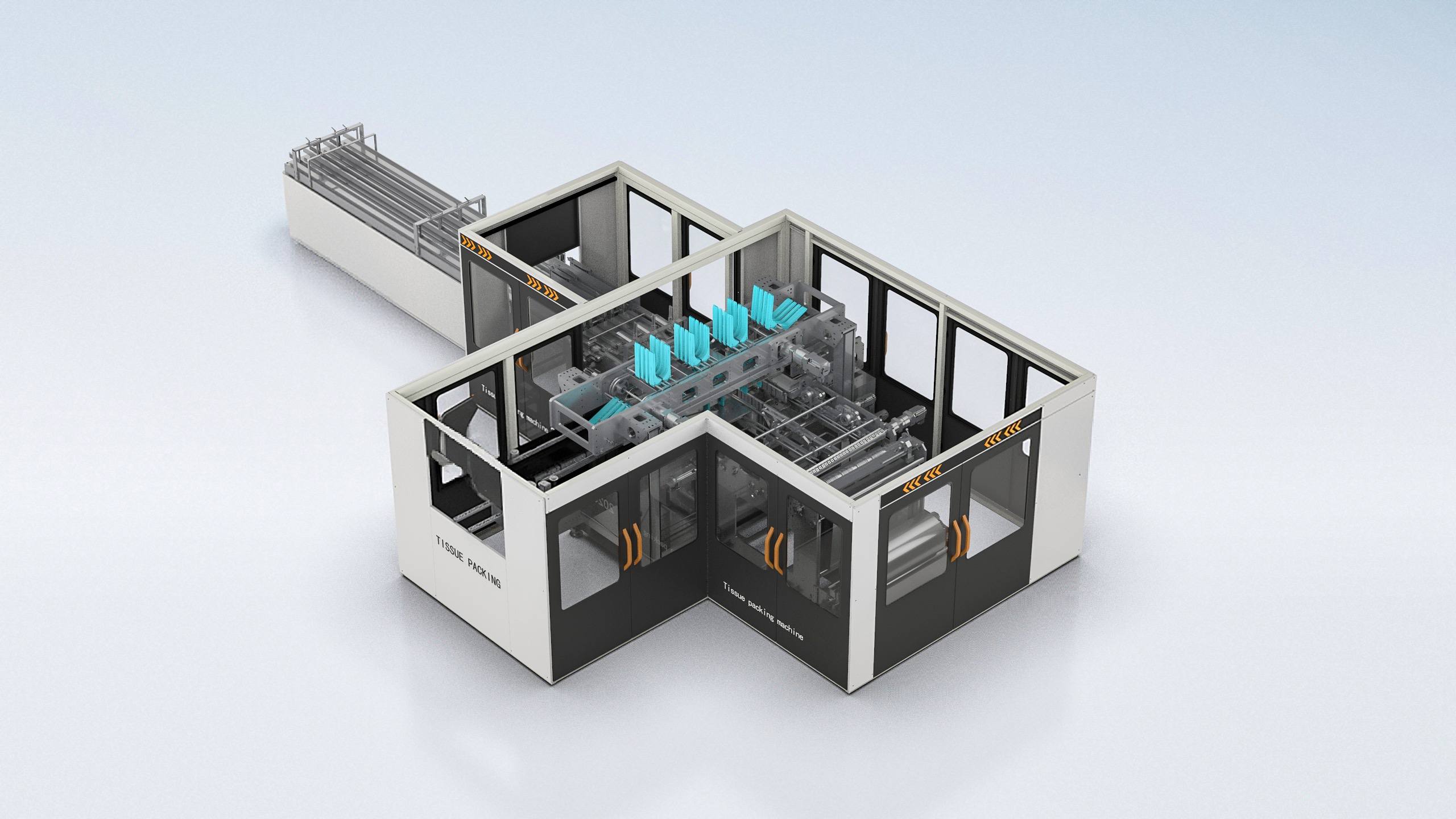

The F-T6 automatic toilet paper roll wrapper provides a highly versatile, single-layer packaging solution designed for both toilet tissue and kitchen towel rolls. Engineered for user-friendly operation, this fully servo-driven packaging machine is powered by the advanced Siemens SIMOTION D motion controller, ensuring maximum stability and a highly reliable production process. With an impressive output speed of over 160 packs per minute, it gives your production line the leading edge in high-speed, premium-quality packaging. Additionally, the upgraded 3-lane infeed system offers flexible packaging configurations: 1, 2, 3, 4, 6, or 9 rolls for toilet paper, and 1, 2, or 3 rolls for kitchen towels.
This wrapper is easy to operate.it is fully servo driven, contrlled by the most advanced motion controlle Siemens SIMoTlN D which alws extremelyreliable production process.lt reaches output production speed over200 packs/min to give you
the leading edge for quality packs at high speed.
| Parameter | Specification |
| Infeed | 3 lanes |
| Max mechanical speed | 160 packs/min |
| Layers | 1 or 2 |
| Average format changeover time | 5-15 min |
| Roll diameter | 90-250mm (3.5-9.8") |
| Roll length | 90-300mm (3.5-11.8") |
| Pack width | 90-400mm (3.5-15.7") |
| Pack length | 90-330mm (3.5-13") |
| Pack height | 90-250 (300)mm (3.5-9.8") (11.8") |
| Wrapping material | PE/LDPE, paper (option) |
| PE/LDPE thickness | 25-50 Microns |
| Reel diameter | up to 500mm (19.7") |
| Installed power | 35KW |
| Real power consumption | 18KW |
| Air consumption | <500 L/min |
| Machine weight | 5000kg |
