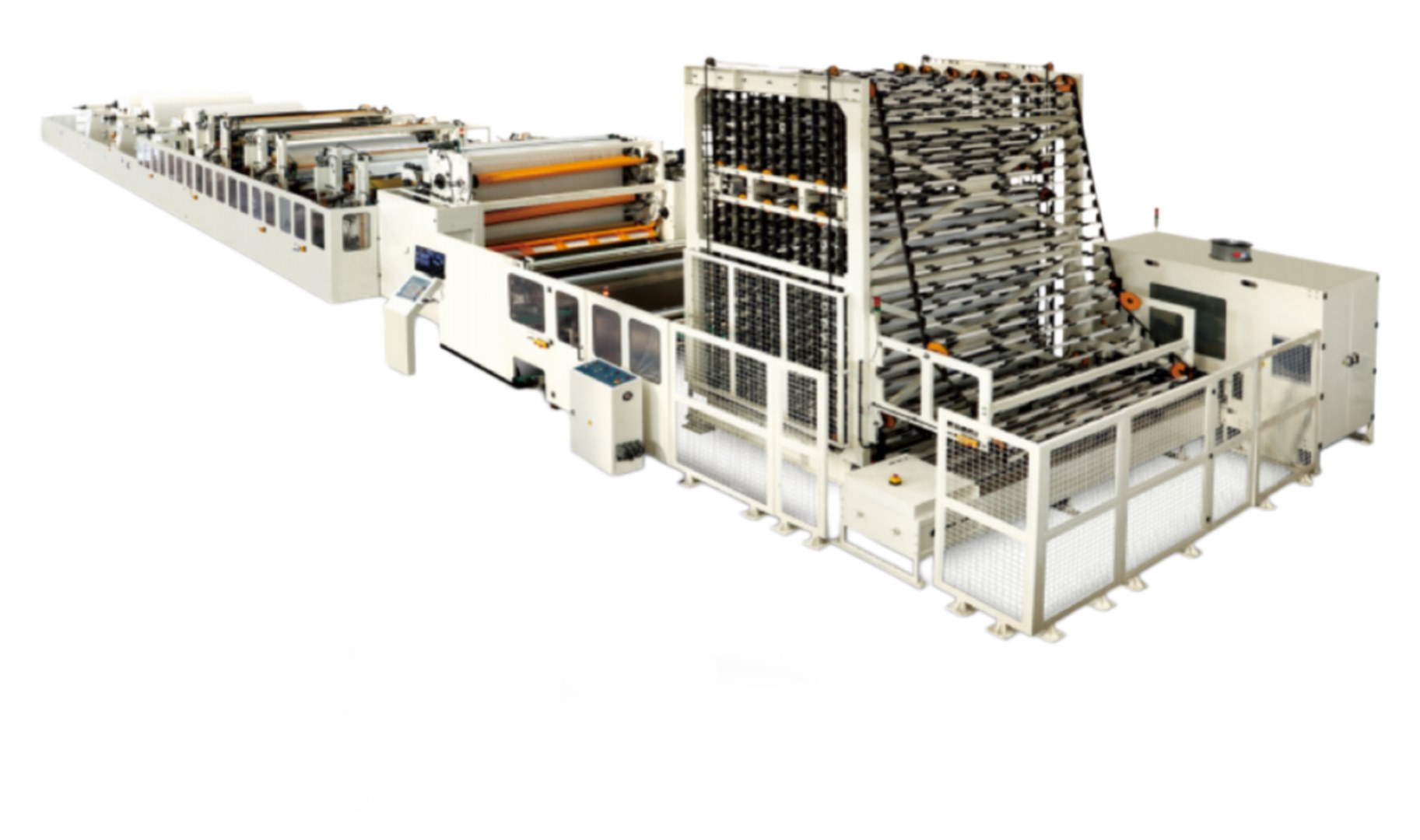

600 Fully Automatic High-speed Toilet Roll/ JRT/ Kitchen Towel Tissue Production Line

The 600 Fully Automatic High-Speed Tissue Production Line is a complete converting solution designed for the efficient production of toilet rolls, jumbo roll tissue (JRT), and kitchen towels. Engineered for high output and stable operation, this production line integrates advanced automation, precision control systems, and optimized mechanical design to deliver consistent product quality while minimizing labor and material waste.

This line operates as a fully integrated system, covering the entire process from jumbo roll unwinding to rewinding, perforation, log cutting, and packaging preparation. With high-speed performance and intelligent control, it ensures smooth web handling, accurate tension management, and uniform roll formation across different product types.

SPECIFICATIONS

ZQ-H600 Rewinder Specifications

ItemSpecification
Max width of jumbo roll2850 / 3650 mm
Production speed0–500 m/min with core
Outer diameter of finished productCored Φ90–Φ135 mm; JT Φ160–Φ300 mm
Outer diameter of finished product coreCored Φ35–Φ50 mm; JRT Φ50–Φ89 mm
Perforation pitch6 blades: 80–140 mm; 3 blades: 160–280 mm





Optional Features

OptionDetails
Backstand1–5 plies, with shaft or shaftless type
EmbossingSteel to rubber / steel roller, high-definition glue-free composite
Core gluingLess than 2 wrinkle pitches per roll
Glue / glue-free laminationPoint-to-point / point-to-bottom / decorative embossing
Glue-free tail sealer25–40 pieces/min
Tip type tail sealer40 logs/min
Fast-change unwinder
With edge-embossing





DH-VIG Log Saw Cutter (4 Lanes)

ItemSpecification
Paper roll length2850 / 3700 mm (others please specify)
Production speed200 cut/min
Specification of finished productOuter diameter: 90–150 mm; cutting length: 50–300 mm
Dust collection systemAbsorbs dust on grinders, equipped with an exhaust fan to remove dust and hot air
Both ends removal system
