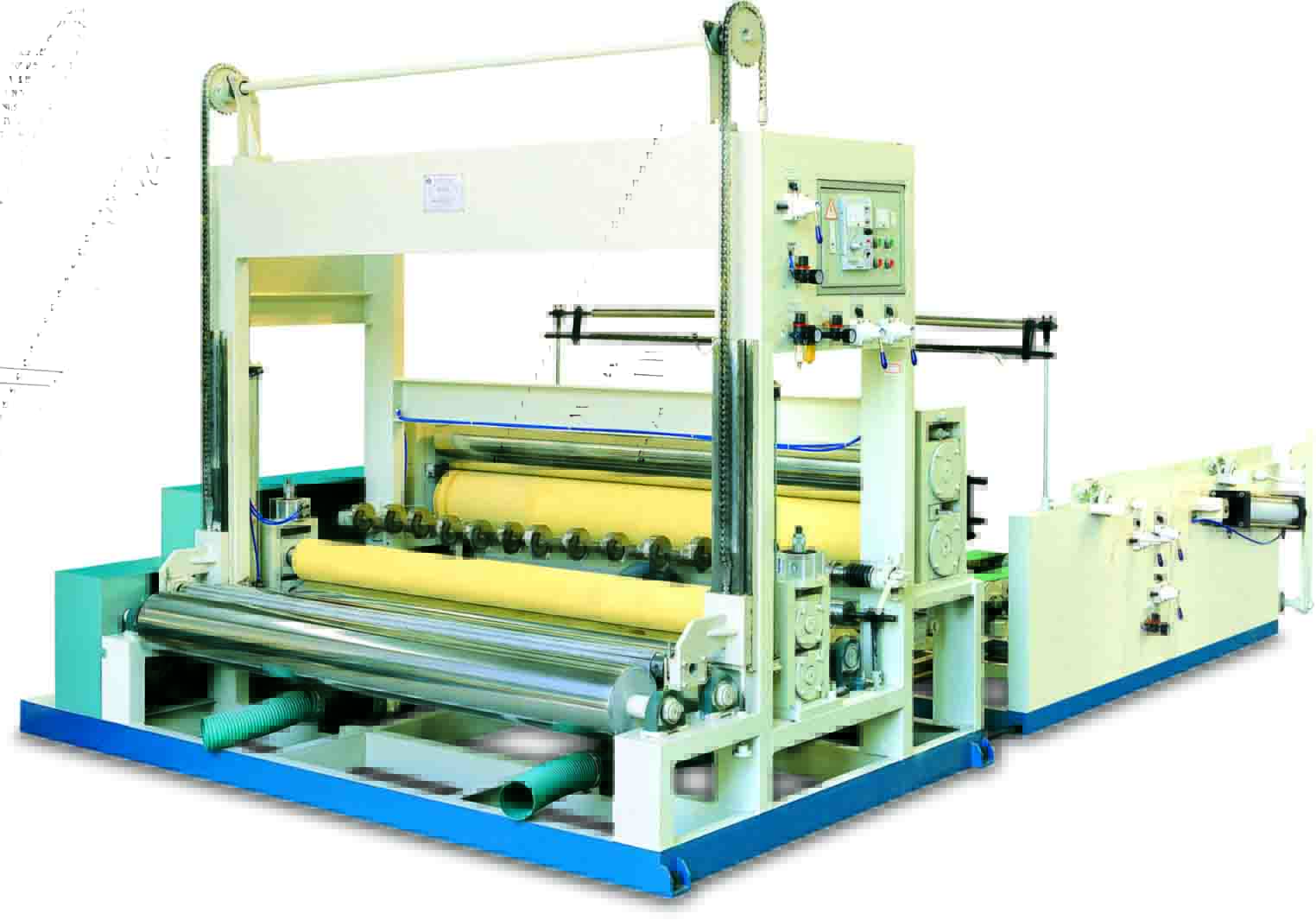

| FC-II Slitting rewinder |
|---|
| Max width of jumbo roll 2200/2900mm |
| Production speed 250-300m/min |
| Max diameter of finished product 1200mm |
| Min slitting width 150mm |
| Side-trimming width 25-50mm |
| Side-trimming system (From rewinder to collecting box) |

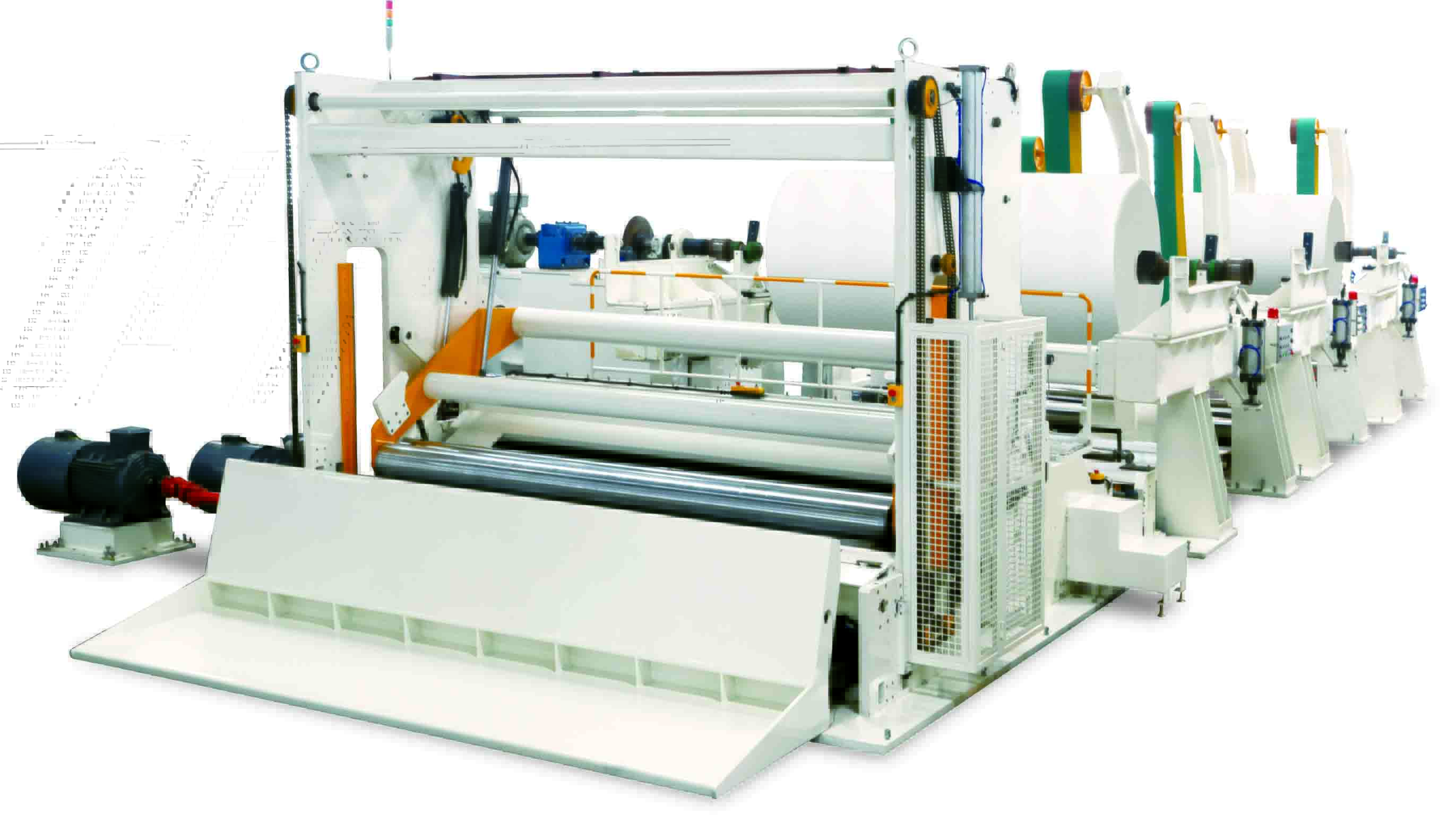

| FC-WX Slitting rewinder |
|---|
| Max width of raw paper 2850/3700mm |
| Production speed 1000~1200m/min |
| Max diameter of finished product φ1800mm, (φ2300, Others please specify) |
| Min slitting width 90mm |
| Side-trimming width 25-50mm |
| Pneumatic upper blade, multi-edged bottom blade |
| Optional |
|---|
| Backstand | 1-5 Layers, shaft type/shaftless type |
| Calemder | |
| Automatic pull/plug shaft system | |
| Side-trimming system | From rewinder to collecting box/to pulper |
| Hydraulic-adjust spreading roller | |
| Expending bottom blade shaft+multi blade slitting ring | |
| Tail cutting | Water blade/cross cutting blade |
| Fast-change unwinder |
| FC-WIX Slitting rewinder | |
|---|
| Max width of raw paper | 2850/3700mm |
| Production speed | 1000m/min |
| Max diameter of finished product | φ1600mm |
| Min slitting width | 90mm |
| Side-trimming width | 25-50mm |
Pneumatic upper blade multi-edged bottom blade
| Optional | |
|---|
| Backstand | 1-5 Layers, shaft type/shaftless type |
| Calendar | |
| Automatic pull/plug shaft system | |
| Side-trimming system | From rewinder to collecting box/to pulper |
| Hydraulic-adjust spreading roller | |
| Expending bottom blade shaft+multi blade slitting ring | |
| Tail cutting | Water blade/cross cutting blade |
| Fast-change unwinder |

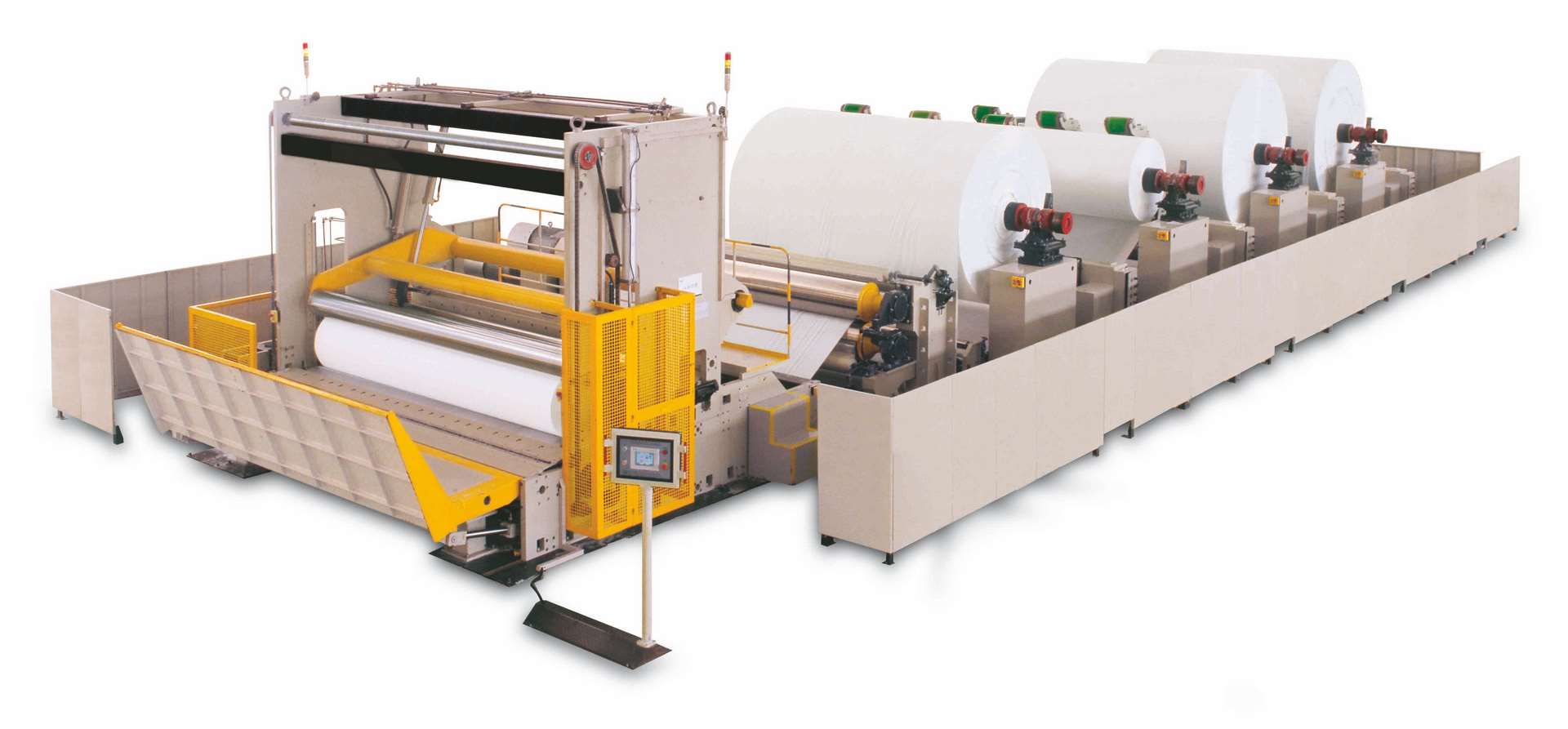

| FC-IV Slitting rewinder | |
|---|
| Max width of raw paper | 2850/3700mm |
| Production speed | 1000~1200m/min |
| Max diameter of finished product | ø1800mm, (ø2300, Others please specify) |
| Min slitting width | 90mm |
| Side-trimming width | 25~50mm |
| Pneumatic upper blade, multi-edged bottom blade |
| Optional | |
|---|
| Backstand | 1–5 Layers, shaft type/shaftless type |
| Calendar | Automatic pull/plug shaft system |
| Side-trimming system | From rewinder to collecting box/to pulper |
| Hydraulic-adjust spreading roller | |
| Expending bottom blade shaft+multi blade slitting ring | |
| Tail cutting | Water blade/cross cutting blade |
| Fast-change unwinder | |
| Unwinding frame tension roller system constant unwinding web tension | |
| Dust removal system |
